12V LED Submersible Rectangular Trailer Light Kit

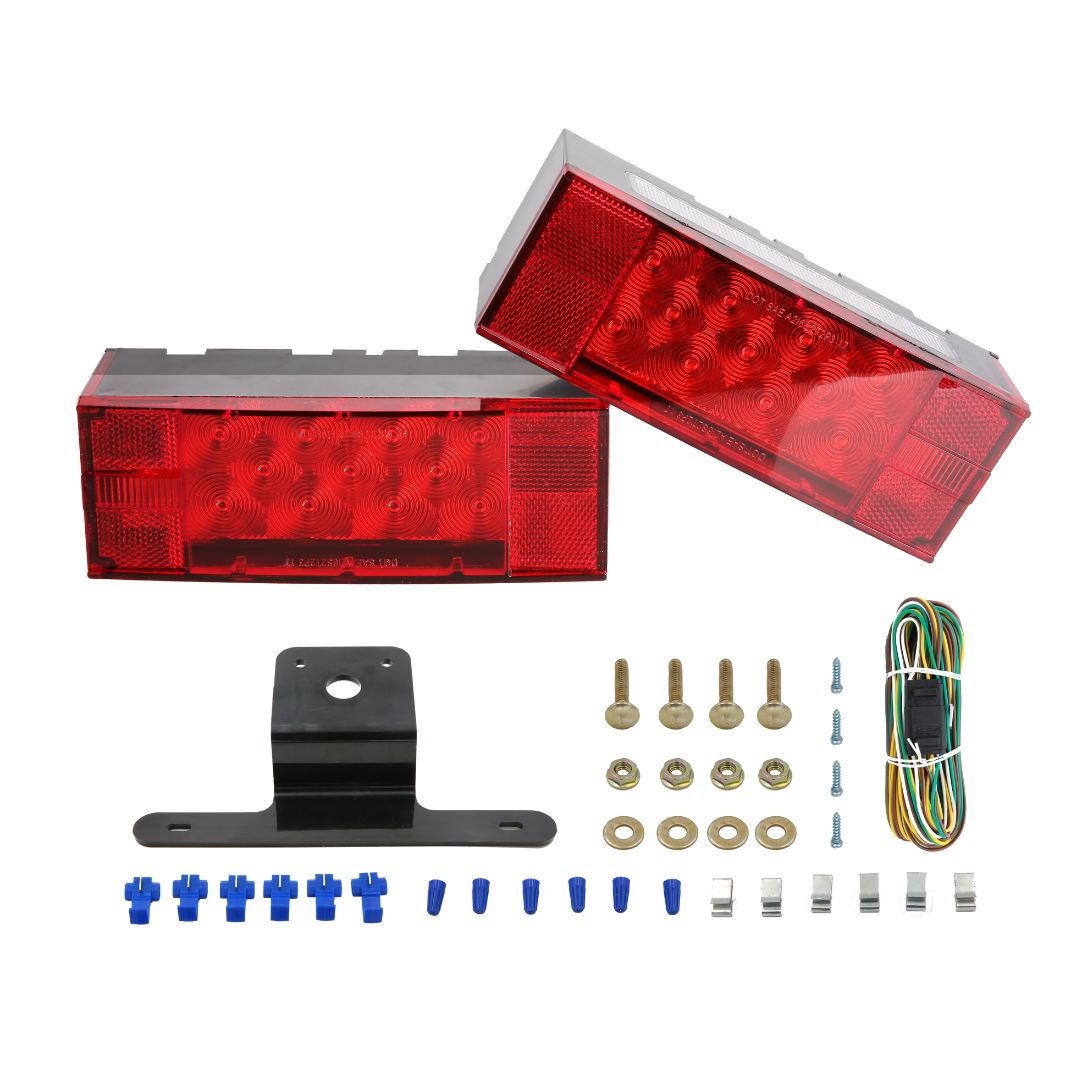

Each kit includes: 2-Stop/Turn/Tail lights, 26ft 4-pole color coded wiring harness, license plate bracket, and mounting hardware.

FEATURES:

• DOT compliant

• 18+12 SMD LED lens which gives even better performance than traditional eagle eye LED, extremely bright

• Waterproof and submersible (tested before shipment)

• Compatibility: 12V trucks, trailer, boat trailer, travel trailer, camper, RV, and motorhome

• No screws on the surface, totally sonically sealed, no rust risk in the future

• Automatic modular production without hand placing and welding diodes improves quality

• Low consumption, high energy, long life

• Great for marine or trailer applications

• Withstand vibration, wet conditions, movement

Light kits are for trailers over and under 80 inches in width. All Reflectors are made of Canadian mold (super bright).

• 3 wires connection system for each light

• Yellow wire: driver side stop/turn signal

• Green wire: passenger side stop/turn signal. Brown wire: tail lamp, marker, clearance & license

• White wire: ground (not applicable to lights are self-grounding)


Testing procedure: 10 lights placed underwater for 3 hours, 3 times each day for a total of 7 days. All the results are positive. The lights are 100% waterproof and submersible.

Please ensure wires connect properly and no electronic short before marine and underwater usage.

MATERIALS:

• Sonically sealed Polymethyl-Methacrylate lens / ABS housing

• Volts: 12V DC.

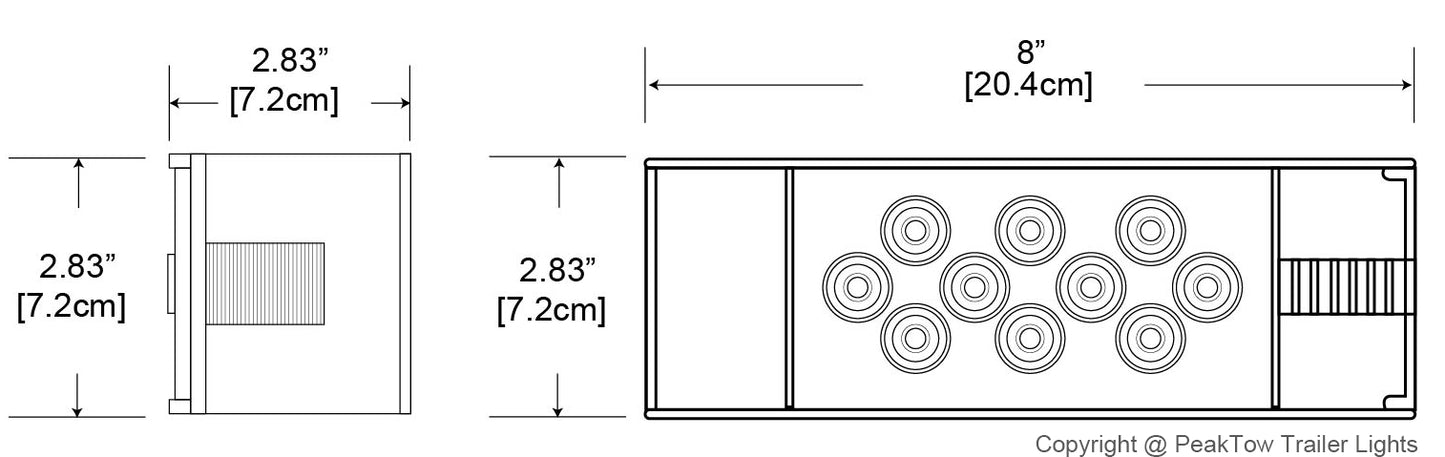

• Package included: 3” x 8” rectangular low profile LED rear combination Stop/Turn/Tail lights, roadside, 1pc. SAE ID code: AIST A2 I6 S2 T2. LED amount: 18 LEDs. 3” x 8” rectangular low profile LED rear combination Stop/Turn/Tail lights, curbside, 1pc. SAE ID code: AIST A2 I6 S2 T2. LED amount: 12 LEDs. 22 + 4 Ft. 4-pole color coded wiring harness, License plate bracket 1pc. Mounting hardware.


NOTE:

• Please Read All Description and Fitment Before Ordering the Product.

• Professionals install is strongly recommended to avoid trouble caused by inexperienced installer!
