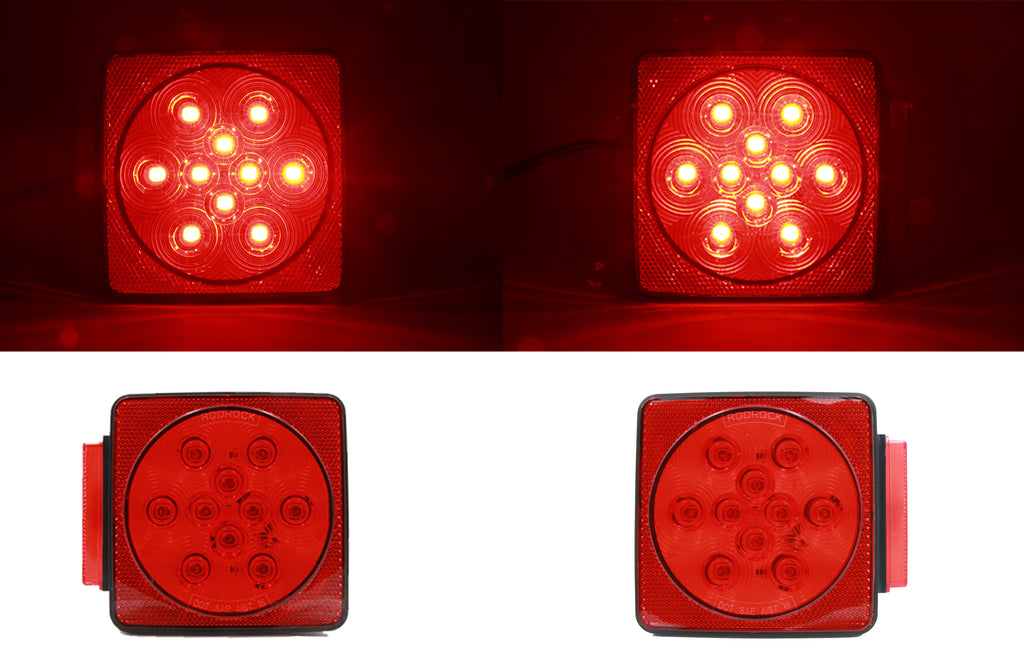

12V LED Submersible Square Trailer Light Kit (Case of 12)

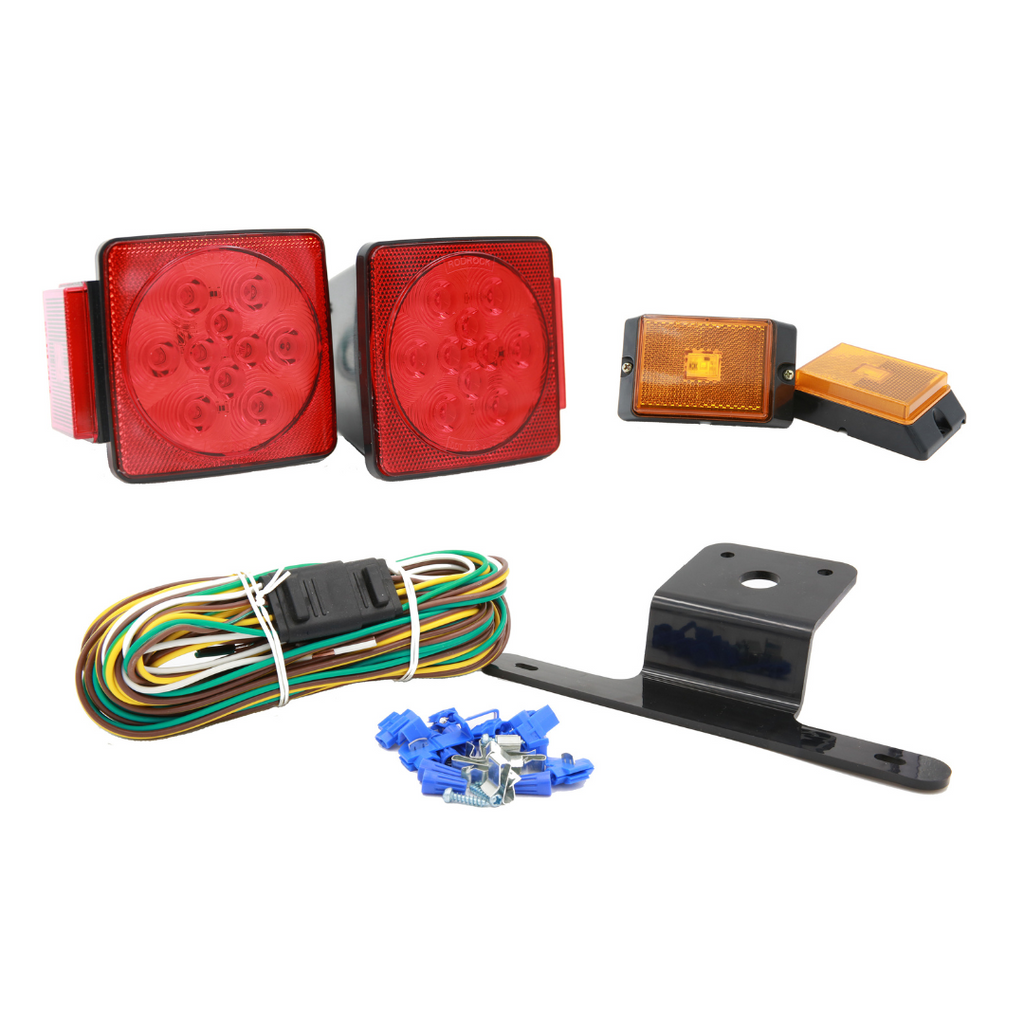

Each kit includes: 2-Stop/Turn/Tail lights, 2-Side markers, 26 ft 4-pole color coded wiring harness, license plate bracket, and mounting hardware.

FEATURES:

• DOT compliant

• SMD LED lens which gives even better performance than traditional eagle eye LED, extremely bright

• Waterproof and submersible (tested before shipment)

• Compatibility: trucks, trailer, boat trailer, travel trailer, camper, RV, motorhome

• Color: red (tail light), amber (side marker)

• No screws on the surface

• No rust risk in the future

• Automatic modular production without hand placing and welding diodes improves quality

• Low consumption, high energy, long life
• Great for marine or trailer applications
• Withstand vibration, wet conditions, and movement

Light kits are for trailers under 80 inches in width. All Reflectors are made by Canadian mold (super bright).

• 3 wires connection system for each tail light

• 1 wire connection system for each side marker light

• Yellow wire: driver side stop/turn signal

• Green wire: passenger side stop/turn signal

• Brown wire: tail lamp, marker, clearance & license

• White wire: ground (not applicable to lights are self-grounding)


Testing procedure: 10 lights placed underwater for 3 hours, 3 times per day for total 7 days. All the results were positive. The lights are 100% waterproof and submersible.

Please ensure wires connect properly and no electronic short before marine and underwater usage.

MATERIALS:

• Sonically sealed Polymethyl-Methacrylate lens / ABS housing

• Volts: 12V DC.

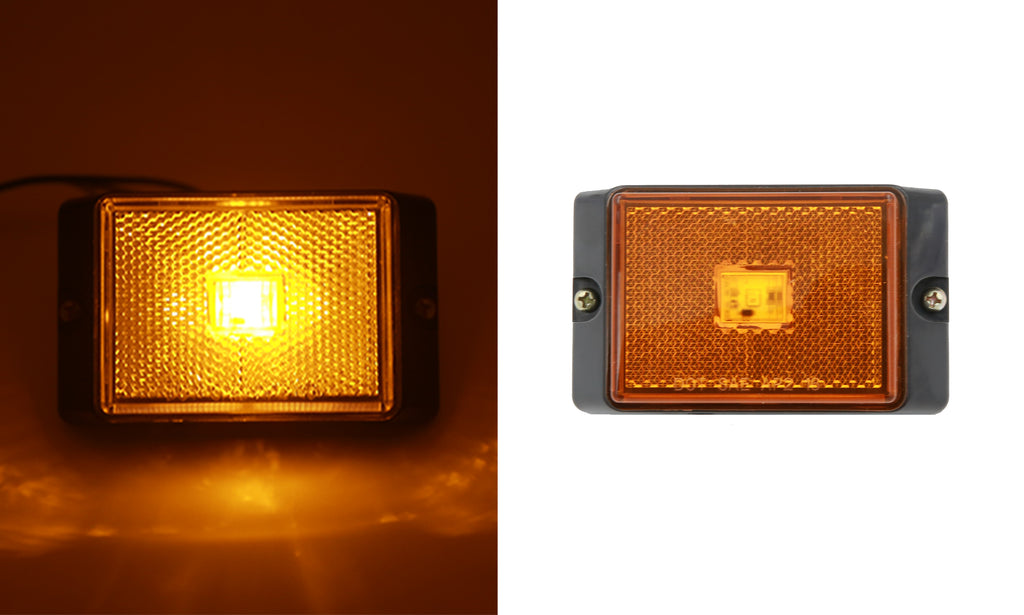

• Package includes: 4” rear combination Stop/Turn/Tail lights, roadside, 1pc.SAE ID code: AIST AP2 L. LED amount: 12 LEDs. 4” rear combination Stop/Turn/Tail lights, curbside, 1pc. SAE ID code: AIST AP2. LED amount: 11 LEDs. 2” rectangular amber side marker clearance light. 2pcs. SAE ID code: AP2. LED amount: 1 LED each. 22 + 4 Ft. 4-pole color coded wiring harness. License plate bracket 1pc. Mounting hardware.


NOTE:

• Please Read All Description and Fitment Before Ordering the Product.

• Professionals install is strongly recommended to avoid trouble caused by inexperienced installer!


One-year limited warranty.
